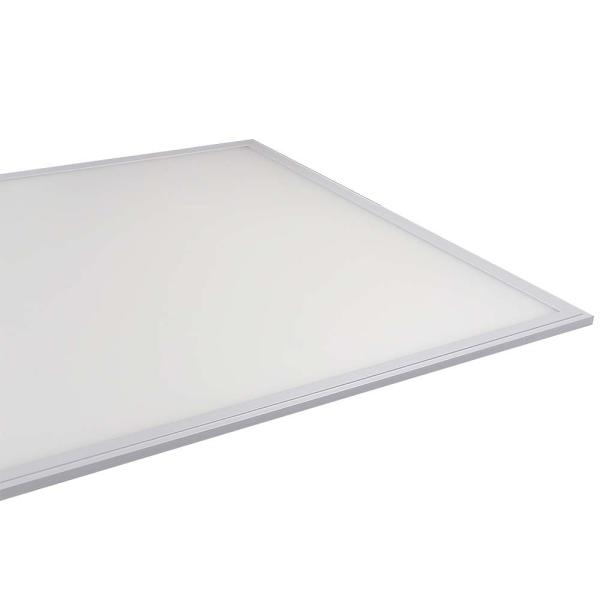

cUL/UL/Dlc Approved 100/130lpw 2X2/1X4/2 X 4 LED Panel Light for Na
Market
Product Description
ATA design is ideal for using in ceiling fixtures
1. Perfect world-class LED technology
2. Makes it really crazy super bright
3. The Same Model, The Lower Price
4. Use mostly in commercial and residential applications
5. Superly easy to install
What should be a good led panel light?
Higher power and light uniformity
LED panels reinforced frame for extra durability
Thermoplastic coating for extreme scratch resistance
Quick connect system operates from 100v to 277v
Product Advantages
1. UL cUL DLC 4.2 LED Panel Light.
2. 125lm/W, could apply for government rebate.
3. Besides 2*2ft, 1*4ft, 2*4ft, 1*1ft 297*297mm is also available!
4. Perfect Light Uniformity.
5. Fire-rated junction box design with correct wiring, easy for
installation.
6. Illuminate any room and ceiling up/down LED panel light LED
panel light is perfect for commercial, residential, decorative
applications like offices, pool table, retail shop, supermarkets,
schools, hotels, restaurants painted ceiling illumination,
workshop, hospital, homes etc.
7. The light provides ceiling accent lighting, usable downlighting
simultaneously
Its transparent polycarbonate lens with frosted center delivers.
Smooth illumination without visible bulbs or hot spots
8. LED light emit 9, 000 lumens of natural white illumination.
9. Energy-efficient LED panel lasts 5 times longer than fluorescent
panels. Operates within a wide 100-277 VAC range. Can be linked to
additional panels
Technical Specifications
Light source: SMD2835, LM80
High efficiency: 125lm/w
Driver efficiency: >89%
CRI(Ra)>80, PF>0.95, THD<15%, UGR<19
Color: 3000K, 4000K, 5000K, 6000K, RGB
Working Voltage: AC100~277V / 347V
Power: 20w/30w/35w/40w/50w/60w/72w/75w
Size (mm): 297*297, 603*603, 300*1213, 603*1213
Frame color: Silver & white
Function: dimmable & non-dimmable, emergency
Dimmable mode: 0-10V, PWM
Beam angle: 120 degree
Light transmission rate: 99%
Material: AL+PS Diffuser
Installation methods: Embedded, Suspending, Roof mount, Latch
catches, Reverse buckling
Accessories: steel wire rope, screw, aluminium structure, Embedded
installation doesn't need accessories
Lighting emitting type: side & back lighting
Certification: UL, cUL, DLC4.2, TUV, GS, CB, SAA, FCC, CE, RoHS
Warranty: 5 years
| Item No. | Specification |
| Power | Size | Lumious Flux(lm) | Product Dimension | LED Driver | Luminous Efficiency |
| US-P11F20WX | 20W | 1'*1' | 2500±5% | 297×297×9(mm) | 1-10V Dimmable | 125LM/W |
| US-P22F30WX | 30W | 2'*2' | 3750±5% | 603×603×9(mm) |
| US-P22F40WX | 40W | 5000±5% |
| US-P22F50WX | 50W | 6250±5% |
| US-P14F35WX | 35W | 1'*4' | 4370±5% | 300×1213×9(mm) |
| US-P14F40WX | 40W | 5000±5% |
| US-P24F35WX | 35W | 2'*4' | 4370±5% | 603×1213×9(mm) | 140LM/W |
| US-P24F40WX | 40W | 5000±5% |
| US-P24F50WX | 50W | 6250±5% |
| US-P24F60WX | 60W | 7500±5% |
| US-P24F72WX | 72W | 9000±5% |
| US-P24F75WX | 75W | 9370±5% |
Installation
1. Embedded without accessories
2. Suspending with wirerope
3. Surface mounting fixture with frame
4. Earthquake proof with hook
Applications
hotel, restaurant, elevator, wedding photography, bank, residential
house and indoor lighting, high-end office, meeting room, villa,
hotel, entertainment place, metro stations, shopping malls,
kitchen, bath-room,emergency lighting, industrial lighting,
airport, hospital, school, office, factory, institution buildings,
places where energy saving lighting and high color rendering index
lighting are needed.
Packaging
User Manual:
Switch off power of the mains supply or respectively of the
connection lead before doing any works.
The complete installation must be done by an electrical expert who
is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least
48hours
Lighting TEST: make sure 100% of the lamps be lighted before
packing
Drop TEST: make sure every single light have been well protected by
box
